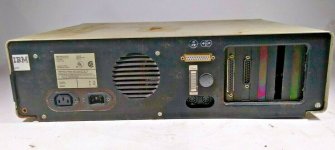

IBM PC 5150 Rev.A (Early S/N : 0101876)

twolazy

Veteran Member
Joined
May 22, 2011
Messages
2,235
Location
Chicago, IL
What a narly looking scsi cable lol but awesome find! 👍 Mhmmmm cassette interface... Wish I never sold mine. At least I still have my 5160 and 5162 mutant. =)

Sadly I think one of the 2 is gonna have to go next year. Tryin to declutter my life mostly to whats important. I hoarded way too much stuff. Still looking for a 5151 monitor though.

Last edited:

fs5500

Veteran Member
Joined
Nov 5, 2008
Messages
507

IBM PC 5150 Rev.A (Early S/N : 0101049)​

is now sold on eBay.


But, BIOS may be replaced with Rev.2


TWAIN

Member
Joined
Jul 14, 2022
Messages
30
Location
Central Texas

IBM PC 5150 Rev.A (Early S/N : 0101049)​

is now sold on eBay.


But, BIOS may be replaced with Rev.2
Yeah, I decided I would finally grab an early rev 5150 to mess with and couldn’t pass this one up. I had one in high school when they first came out…really brings back memories!

Last edited:

chris_nh

Experienced Member
Joined
Jan 28, 2019
Messages
370
Location
New Hampshire
When that #1049 machine arrives, would you give us the BASIC ROM date codes? I believe they are still original. U33 BIOS was replaced. I would like to correspond the date codes with another very early 5150 with unknown serial number. Awesome score, congrats.


TWAIN

Member
Joined
Jul 14, 2022
Messages
30
Location
Central Texas
When that #1049 machine arrives, would you give us the BASIC ROM date codes? I believe they are still original. U33 BIOS was replaced. I would like to correspond the date codes with another very early 5150 with unknown serial number. Awesome score, congrats.
Will do. It should arrive mid-next-week.

I wish this had the 4/24/81 BIOS though. I would have swapped the BIOS ROM myself with rev3…but it would have been nice to have on hand. The rest of the system appears to be in excellent shape. Curious about some of the cards in it.


fs5500

Veteran Member
Joined
Nov 5, 2008
Messages
507
However, the surprising thing is that only three units with serial numbers less than 5000 were identified in the IBM PC 5150 Rev.1 (16-64KB) model exhibited on eBay this year. 2 units are as they have already been introduced here, and the other 1 was not introduced here, but it was a broken junk product.


Attachments

  • 11.jpg
    59.1 KB · Views: 61
  • 12.jpg
    67 KB · Views: 64
  • 13.jpg
    114.7 KB · Views: 81
  • 14.jpg
    113.1 KB · Views: 84
  • 15.jpg
    188.8 KB · Views: 86
  • 16.jpg
    229.1 KB · Views: 76
  • 17.jpg
    281.8 KB · Views: 72
  • 18.jpg
    382.7 KB · Views: 64

Timo W.

Veteran Member
Joined
Nov 25, 2014
Messages
2,103
Location
Germany
However, the surprising thing is that only three units with serial numbers less than 2000 were identified in the IBM PC 5150 Rev.1 (16-64KB) model exhibited on eBay this year. 2 units are as they have already been introduced here, and the other 1 was not introduced here, but it was a broken junk product.
What exactly is "surprising" on that? Apart from the fact that I never understood why people care about low serial numbers, it sounds like you think the number of units sold on eBay somehow reflects how many of them are still around.


fs5500

Veteran Member
Joined
Nov 5, 2008
Messages
507

Timo W.

If you are trying to disparage the value of the early model of the IBM PC 5150, let alone understand it, I hope you do not write in this thread. If you are not interested, please go to another thread.


TWAIN

Member
Joined
Jul 14, 2022
Messages
30
Location
Central Texas
Serial 101049 arrived today. Below are some of the highlights. Let me know if there’s any other info you’d like…I’ll be stripping it over the comings days. It’s had some upgrades over the years but in pretty decent shape.

1) Blackish power supply with raised nuts
2) Metal speaker holder
3) 100% blue tantalum caps, socketed 8088
4) one tan/one white main power connector
5) floppys/MDA card/U33 upgraded, not original
6) expansion card screws are socket-only, no flathead slots
7) BIOS pic attached


However…

As luck would have it…I had a true “barn find” today. I found serial 122448 shoved in the back of an antique mall booth 200 mi north of me and I drove up to get it. This one was special. An IBM engineer ordered this for his son in Oct 81 as a Christmas present. Said son used it for a month after Christmas and decided he didn’t like it…so the whole setup was put away in the original boxes…for 40 years! Family finally brought it back in the open (probably due to to family death)…turned it on, no-go. Based on symptoms, it’s a bad tantalum cap or two. I stumbled upon it and immediately jumped. Spent a bit more than I anticipated, but certainly much less than piecing all of this together.

Again, this one was special. It was ordered/configured “maxed out”..,and it’s all in as-new condition with original boxes.

Listing below of what I got…all rev 1, first edition:

1) 5150 with dual single-sided drives, populated to 64k. Black power supply with raised nuts. Plastic speaker holder, mix of blue and yellow tantalums.
2) original rev1 U33
3) MDA card with light pen connector, black slot plate
4) CGA card with black slot plate
5) game card with black slot plate…I’ve never even seen these before
6) 64k upgrade card with black slot plate, bought/installed Jan 82
7) floppy controller with black slot plate
8) 5151 monitor
9) model F keyboard (no metal DIN connector though…darn)
10) 5152 printer with the IBM branded stand and original “beefy” parallel port cable
11) first edition of the following, with manuals and disks: Guide to Operations (also has cassette), DOS 1.0, BASIC, Hardware Maintenance and Service, VisiCalc, EasyWriter, Typing Tutor, Software Submissions (!), warranty card, welcome letters, etc.

Gonna be a busy few weeks getting this sorted out. I may marry these two systems together, we’ll see…

Last edited:

fs5500

Veteran Member
Joined
Nov 5, 2008
Messages
507
TWAIN

Thanks very much for posting photo of early IBM PC BASIC ROM.

I've only seen 4 of the IBM PC 5150 early versions (P/N of motherboard: 1802437, 16-64KB) on eBay over the past year.
Unfortunately, I couldn't confirm whether the initial BIOS (P/N: 5700051) plugged into the U33 was plugged in as it was until owner opened it.
We have confirmed 3 out of 4, but the model (S/N: 0101876) that was originally posted in this thread has not yet received any information from the current owner.
2 out of 4 confirmed that the BIOS was already upgraded, and 1 The motherboard has failed, but the BIOS has been reported to be of the original type and there is nothing wrong with it.


TWAIN

Member
Joined
Jul 14, 2022
Messages
30
Location
Central Texas
Motherboard of serial 101049 fully out. Very interesting. The part# is 1802429 and has mod/patch wires on both sides. Most chips are dated May/June of 81. Pics of top and bottom attached to this post.




mR_Slug

Veteran Member
Joined
Nov 28, 2006
Messages
941
Location
UK
As luck would have it…I had a true “barn find” today.
OK this is very interesting. You have the oldest 5150 I have on file and the first with a plastic speaker mount. Last I have on file with a metal one is 0122227, yours is 0122448 so that's like approx 200 machines in between. we are getting very close on the speaker mount issue. Wish we were closer on the brown raised nut PSU and black sunken nut PSU.

I had not known of motherboard differences, (apart from brown PSU connector), where is the part no. printed?

What floppy controller do you have in the later machine? (see minuszero) the early one has a big metal caned part on the bottom left.

Thanks for the info and pictures


fs5500

Veteran Member
Joined
Nov 5, 2008
Messages
507

TWAIN

Thanks! I really didn't know P/N of early IBM PC 5150 motherboard is 1802429.
My motherboard of P/N is 1802437.

I wonder your motherboard works well.


TWAIN

Member
Joined
Jul 14, 2022
Messages
30
Location
Central Texas

TWAIN

Thanks! I really didn't know P/N of early IBM PC 5150 motherboard is 1802429.
My motherboard of P/N is 1802437.

I wonder your motherboard works well.
This system was booted by the seller prior to shipment. Still, I’m going to take my time and be careful with this one.


TWAIN

Member
Joined
Jul 14, 2022
Messages
30
Location
Central Texas
OK this is very interesting. You have the oldest 5150 I have on file and the first with a plastic speaker mount. Last I have on file with a metal one is 0122227, yours is 0122448 so that's like approx 200 machines in between. we are getting very close on the speaker mount issue. Wish we were closer on the brown raised nut PSU and black sunken nut PSU.

I had not known of motherboard differences, (apart from brown PSU connector), where is the part no. printed?

What floppy controller do you have in the later machine? (see minuszero) the early one has a big metal caned part on the bottom left.

Thanks for the info and pictures

The floppy controller on the (somewhat) later system is the early model with the IBM metal chips. All of the cards are of the very early type.

The motherboard part# is to the left of U33 of the pic I posted.

As far as the plastic speaker holder…122448 appears to have been picked up on Oct 12, 1981 but unknown how that relates to mfg date.


TWAIN

Member
Joined
Jul 14, 2022
Messages
30
Location
Central Texas
PKHOURY has s/n 100485 and the main board has no silkscreened p/n on it. PSU question on early Model A 5150
Interesting that 100485 has the same mod wires on it that mine does, but no part #. I also didn’t notice but mine has those black square caps at the polarity RAM as well. All very interesting differences that show IBM’s progression on these systems. I hope PKHOURY got his running.


VERAULT

Veteran Member
Joined
Jan 30, 2012
Messages
7,945
Location
Connecticut, USA
Hey guys. I am still working on my 5150 early model (would it be a Rev B if its a 16KB-64KB board with the Oct 1981 bios as opposed to the April 1981 bios?). Anyway I had a general question. Been doing alot of repair work on my 5150's and 5160's in the past few weeks. I have one board that came out of a 5150 that I am not sure is authentic. How can you tell if a board is IBM or Clone?
