Got my master PSU up and running but the Master itself is very sick :)

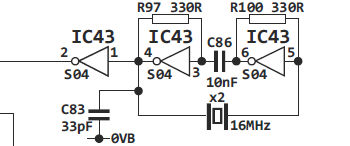

The circuit diagram has a 16MHz oscillator that outputs through a 74S04


Then this goes to a video processor that also outputs various clocks and the 2MHz clock is used to run the processor

Pin 2 of IC43 is not showing anything like a 16MHz wave so I suspect this circuit. The gate IC tests ok although the Hex inverter actually fitted to my Master is a 74LS04 rather than the 74S04 specified in the manual but I doubt that should be causing the problem as 74LS while slower, should be ok for 16MHz I would have though ? This clock is then split at the video processor into 1,2,4 & 8 MHz clocks and none of them are stable and the whole machine is going crazy (the cassette interface relay clicks like mad !)

So maybe a failed capacitor. Thing is, the capacitors in the service manual are listed as CPLT, which I cant work out what they are.

0631,033 CPCTR CPLT 33p 3V 2% C83
0631,100 CPCTR CPLT 100p 3V 2% C86

Anyone know what a CPLT is short for ?

I probably can use a Mica capacitor I think, can get them in 2% tollerance but RS want £30 for one 10nf unit ! but I also note the discrepancy between the drawing and the parts list

The caps themselves have 33 and 10 written on them, so I am inclined to believe the drawing but is 10nF too big ?

Last edited:

daver2

Veteran Member
Joined
Jun 19, 2012
Messages
6,801
Location
UK - Worcester
Gary,

I don't know about the CPLT (but ceramic plate ... comes to mind).

The 74LS (to my mind) will be too slow, and why the 74S would have been specified in the first place.

Dave


Gary C

Veteran Member
Joined
May 26, 2018
Messages
1,259
Location
Lancashire, UK
Thanks Dave, you are probably right. I have ordered some 74S04's though I suppose some HCT's would have done the trick but might as well stick with the original spec.

This machine has been right royally messed about with, no PSU and half the chips seem to have been re-socketed. Good job it was really cheap.


SiriusHardware

Experienced Member
Joined
Feb 15, 2014
Messages
431
Location
UK
If the IC is in a socket, take it out and re-insert it with pin 2 bent out sideways over the side of the socket so that it is not connected to the ongoing clock-out line and have a look at the signal on pin 2 while it is not connected to anything. This is to make sure that the clock output signal is not being damped by a fault on one of the inputs that the clock-out line is connected to.

I tend to agree with Daver2 that it will have been specified as 74S04 for a reason, when it would have been easier just to use a standard 74LS series otherwise.


Gary C

Veteran Member
Joined
May 26, 2018
Messages
1,259
Location
Lancashire, UK
Yes, already tried pin 2 disconnected to make sure it wasn't a problem down stream.

But this morning, got the S04's and put one in before I went to work and on power up the cassette relay clicked once, indicating its been addressed correctly. Didn't have time to connect up anything else or check the output on the scope but its looking better.

As you say, its an S04 for a reason, 16MHz gives a 62ns cycle, and an LS switching is about 30ns, so marginal especially once propagation is factored in by the looks.

It does look as if the previous owner has socketed many chips trying to find out what was causing the problem, probably didn't have a scope.

The service manual does warn about running a machine with no clock as it might damage the Drams so I might have some more work to do :)


Gary C

Veteran Member
Joined
May 26, 2018
Messages
1,259
Location
Lancashire, UK
So with the 74S04, I now have the 16MHz clock and the Video processor is producing the 1,2,4 & 8 MHz clocks. The CPU is running (pin 7 toggling) and the ROM and RAM both show activity but the machine doesnt.

Looking around, I am not getting any activity out of the IO processor IC15.


SiriusHardware

Experienced Member
Joined
Feb 15, 2014
Messages
431
Location
UK
Do you have a link to an online copy of the service manual or circuit? I have the SM for the BBC B, but not for the Master.


Gary C

Veteran Member
Joined
May 26, 2018
Messages
1,259
Location
Lancashire, UK
Yep, got the Master service manual and it does mention IC15, but not really in regard to diagnosing it.

Found a replacement from a reputable seller for not much so going to swap it anyway, but I have a niggle that its not being asked to work, rather than not working itself.


daver2

Veteran Member
Joined
Jun 19, 2012
Messages
6,801
Location
UK - Worcester
Just helped remotely diagnose a problem with our cards.

It looks as though someone had previously replaced a 74HC240 with a 74LS240. The HC device was specifically chosen for its increased noise immunity. Yes, a 74LS240 will physically work - but it is not reliable in a noisy environment. Guess what, it was unreliable...

Dave


SiriusHardware

Experienced Member
Joined
Feb 15, 2014
Messages
431
Location
UK
Yep, got the Master service manual
Um, I got that. What I meant was, is there anywhere the rest of us can find an online version to make it easier to follow your case?


Gary C

Veteran Member
Joined
May 26, 2018
Messages
1,259
Location
Lancashire, UK
The I/O processor seems to run as the chip select decoder for most of the peripheral chips including the CRTC and the VIA's but I am getting nothing out of it.

Looking at it, it uses a couple of data lines AD4 & AD5 plus some address lines. AD4 & AD5 are a right mess.

Mem controller.jpg

But if I pull the memory controller IC out, it reverts to a nice square wave, and not only that, the IO controller suddenly starts doing something.

Think its time for a new mem controller, which is a shame as its an Acorn custom chip.


SiriusHardware

Experienced Member
Joined
Feb 15, 2014
Messages
431
Location
UK
Thanks for the link, although the quality of the circuit diagrams in that particular copy is dire (not your fault, I know). I have a policy of not automatically assuming that the fault is the expensive / unobtainable thing. The memory controller may be working properly but it might be enabling other elements (such as damaged memory ICs) which have one or more stuck bits and are causing that bus chaos.

The manual warned you that running without a working clock could potentially damage the RAMs, do you have any way of independently testing the RAM ICs, maybe a specific tester or maybe another, working computer which can accept the same RAMs?


Gary C

Veteran Member
Joined
May 26, 2018
Messages
1,259
Location
Lancashire, UK
My ram tester wont take 4464's but the data line corruption is identical with them out of circuit.

Fortunately, the mem controller IC isn't that expensive from a reputable supplier and given I have quite a few Masters to maintain, its probably worth having a set to hand.


Gary C

Veteran Member
Joined
May 26, 2018
Messages
1,259
Location
Lancashire, UK
Arrrg

Ok, so I have no idea of the history of this machine but can only surmise that its been well and truly buggered about with.

Just noticed that a couple of decoder chips in the DRAM address bus are 74LS253 rather than the specified 74HCT253's

No idea what they were up to.

Just need to find a 74HCT253.


SiriusHardware

Experienced Member
Joined
Feb 15, 2014
Messages
431
Location
UK
I'm wondering if you should now just go through the whole chip parts list and replace non-original parts (where found) with the original specified parts. That alone probably won't get the machine working but it should eliminate a few unwanted uncertainties.


Gary C

Veteran Member
Joined
May 26, 2018
Messages
1,259
Location
Lancashire, UK
Yep, thats what I was doing when I noted the drawing said HCT's

I though that if they had swapped one, they might have swapped others. I am assuming someone though to test all the logic chips with a tester and hadn't clicked that some types don't test properly on some testers and believed a) that they were faulty and b) that any old logic chip would do.

I was looking at equivalent parts (like a 74AHCS153 which the Ti website suggested) as RS don't stock HCT versions but decided to stick with the same spec but they are going to take a couple of weeks from Bulgaria so have gone PET playing for a while.


Gary C

Veteran Member
Joined
May 26, 2018
Messages
1,259
Location
Lancashire, UK
And worth updating the thread.

Decoders replaced with correct speed items and bingo

A working Master 128 :)

Its a bizarre machine as virtually every chip is socketed but if it works :)


daver2

Veteran Member
Joined
Jun 19, 2012
Messages
6,801
Location
UK - Worcester
It's always good when a plan comes together!

Probably been 'played with' previously by someone who didn't really know what they were doing...

Dave
