Dec H851 pcb redesign

Roland Huisman

Veteran Member
Joined
Mar 24, 2011
Messages
1,324
Location
The Netherlands
So I've had it with the bad PCB's on the H851 top connectors.
Now a second one has a broken trace. I've redesigned the PCB
and ordered a few in China. This offers me also the possibility of
making a few extra H851s from a few single connectors...

Dec H851.jpg

Dec H851 new.jpg

When I have the PCB's I will let you all know if I succeed.

Regards, Roland


Roland Huisman

Veteran Member
Joined
Mar 24, 2011
Messages
1,324
Location
The Netherlands
So today I finally got my new PCBs for the H851 connectors.
I first divided the PCB into 4 pieces with a little saw. The removed
the pieces of the old PCB by heating it with a paint stripper.

Remove old PCB.jpg

The clean connector and new PCB. (Got 11 spare PCBs now)

ready for new PCB.jpg

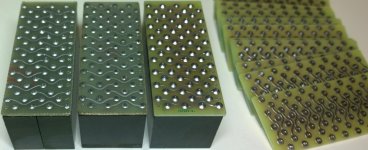

And I've noticed that there are at least two versions of the H851.
The old version (on the left) does not seem to have a plating trough the holes.
Little metal bushes are used here to connect the top and bottom of the PCB.
There are also two separate connectors and those are integrated into one
connector in the newer version. (In the middle)

At the right my new PCB is soldered at the original connector. Brand new again :D


Now I got my 4 H851 plugs to complete my 4K of memory. YaaaY :D

Regards, Roland


pearce_jj

Veteran Member
Joined
May 14, 2010
Messages
2,746
Location
UK
A particularly pleasing solder job there with so many perfectly equal blobs over the pins :)


anders_bzn

Experienced Member
Joined
Jan 27, 2016
Messages
232
Location
Sweden
Those boards looks really good! I have at least one broken H851 and I planed to do exactly what you did. Did you make any extras that you can sell?


Roland Huisman

Veteran Member
Joined
Mar 24, 2011
Messages
1,324
Location
The Netherlands
Thanks for the complements guys :D

And yes, I've got a few spares! And I can also share the gerber files as well if anyone is interested.

Regards, Roland
